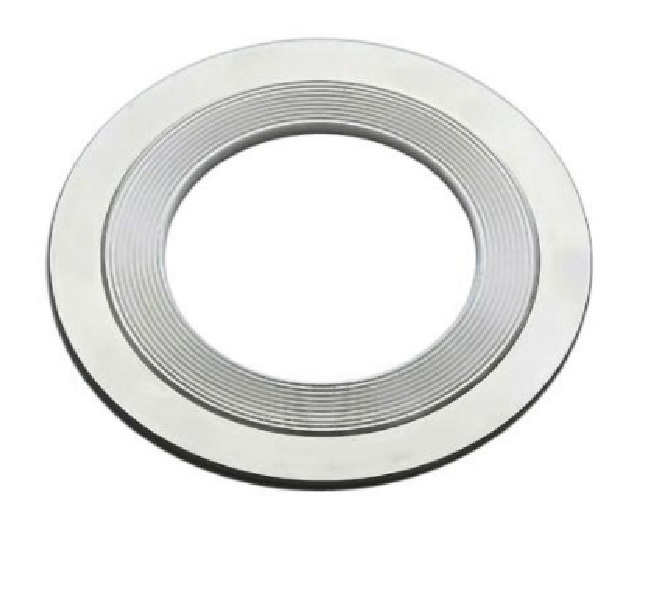

Spiral Wound Gaskets

• Application
• Used for sealing flanges in pipelines, pressure vessels, heat exchangers, and valve bonnets

• Gasket Coefficient
• m=3.0, y=10000 psi (typical)

• Hardness
• 35 to 70 Shore A

• Inner Ring
• Stainless Steel, Carbon Steel, Alloy Steel

• Material
• Other

• Medium
• Oil, Gas

• Outer Ring
• Stainless Steel, Carbon Steel, Alloy Steel

• Pressure Resistance
• up to 250 bar (3600 psi)

• Shape
• Other

• Size
• Customizable (commonly 12 to 60 or DN15 to DN1500)

• Standard
• ASME B16.20, DIN, BS, JIS, EN, API

• Temperature Resistance
• up to 550C (depending on material selection)

• Thickness
• 3.2 mm to 7.2 mm

• Vaccum Range
• Full vacuum to high pressure

• Working Temperature
• -200C to +550C

• Application
• Industrial

• Color
• Silver

• Hardness
• Hard

• Material
• Metal

• Product Type
• Stainless Steel Spiral Wound Gasket

• Shape
• Ring Gasket

• Size
• Standard

• Thickness
• 6 Millimeter (mm)

• Usage
• Industrial
