Metal Gasket

Name: Metal Gasket
Brand: J. KHUSHALDAS & CO. (SPD)
Price: 10-5000 INR
Availability: InStock

10-5000 INR/Kilograms

Get a Price/Quote

Product Details:

Gasket Coefficient 0.3
Pressure Resistance Up to 40 bar
Vaccum Range Up to 10^-3 Torr
Standard ASME, DIN, JIS
Medium Steam, Oil, Gas, Water
Temperature Resistance Up to 600C
Working Temperature Up to 600C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Metal Gasket Price And Quantity

Price 10-5000 INR/Kilograms

Metal Gasket Product Specifications

Application Piping, Flange & Industrial Sealing
Outer Ring Stainless Steel Outer Ring
Gasket Coefficient 0.3
Thickness 3 mm
Shape Round
Vaccum Range Up to 10^-3 Torr
Material SS304, SS316, Copper, Aluminum, Nickel
Pressure Resistance Up to 40 bar
Size Custom & Standard Sizes Available
Inner Ring Stainless Steel Inner Ring
Standard ASME, DIN, JIS
Medium Steam, Oil, Gas, Water
Working Temperature Up to 600C
Hardness 80-100 HB
Temperature Resistance Up to 600C

Metal Gasket Trade Information

Supply Ability 100 Per Week
Delivery Time 1 Week
Main Export Market(s) Australia, South America, Asia, Africa
Main Domestic Market All India

Product Description

These ring shaped metal gaskets are used as suitable fitting accessories for gas, water and oil transferring pipelines. Metals like stainless steel ( 304/321/316L grade and others), mild steel or duplex stainless steel is chosen as the raw materials for such gaskets. Notable for their perfect round shape and flat look, these gaskets have been designed as per DIN/ASME norms. Offered metal gaskets are perfect for pipelines that have up to 7 mpa pressure. These can endure up to 17% compression force and their maximum recovery rate is 50%. These gaskets are 1.92 g/cm3 dense and maximum 10 mm in thickness.

Product details

Diameter	Upto 5 mm
Material	Metal
Color	Black & White
Brand	JK
Thickness	1 mm to 4 mm

Superior Corrosion Resistance for Longevity

With high corrosion resistance, these metal gaskets are designed to withstand harsh industrial environments, making them ideal for steam, oil, gas, and water applications. Their durable construction using premium materials such as SS304, SS316, copper, aluminum, and nickel ensures longevity and reliable performance even under demanding mechanical conditions.

Leak-Free Performance and Precise Fit

Boasting a leakage rate of 110^-7 Pam/s and easy installation, these gaskets minimize process interruptions. The smooth surface finish, combined with a robust inner and outer ring made of stainless steel, ensures a secure and precise seal for all major joint types. Custom sizing options further facilitate optimized fitment in diverse flange and piping systems.

Comprehensive Application Range and Certifications

Suitable for a wide variety of applications including piping, flange, and industrial sealing, these gaskets are compatible with prevalent standards such as ASME, DIN, and JIS. They deliver reliable sealing under high temperature (up to 600C) and pressure (up to 40 bar) conditions, making them an ideal choice for multiple sectors and export requirements.

FAQs of Metal Gasket:

Q: How do you install a metal gasket with smooth and polished surfaces?

A: Installation is straightforward due to the gaskets precise engineering and smooth surface finish. Simply align the gasket on the joint or flange, ensuring it fits securely. Hand tighten the bolts for initial placement, then use recommended torque to achieve optimal sealing and leakage prevention.

Q: What materials are available for these gaskets and what benefits do they offer?

A: The gaskets are manufactured from SS304, SS316, copper, aluminum, and nickel. Stainless steel variants provide superior corrosion resistance and robustness, while copper and aluminum offer excellent thermal and electrical conductivity. Nickel options deliver enhanced durability for high-temperature applications.

Q: When is it best to use these gaskets in industrial settings?

A: These metal gaskets are ideal during routine maintenance, new equipment installation, or upgrades that require high-integrity sealing for steam, oil, gas, and water systems. Their high temperature and pressure resistance make them suitable for demanding operational conditions in industrial environments.

Q: Where can these metal gaskets be supplied and distributed?

A: As a distributor, exporter, manufacturer, supplier, and trader based in India, these metal gaskets are available for global markets. They are packaged securely in boxes or cartons to ensure safe delivery and ease of handling during transportation.

Q: What is the process for customizing the size of a metal gasket?

A: Custom sizes are available on request. Customers share their specific dimensions and requirements, and the manufacturing team proceeds with precision fabrication, maintaining all standard properties such as thickness, density, and surface finish, to meet application needs.

Q: How does the gasket ensure a low leakage rate in piping and flange connections?

A: The gaskets smooth surface and accurately engineered fit, combined with the hardness of 80100 HB and stainless steel inner and outer rings, establish a superior seal that minimizes leakage to 110^-7 Pam/s, even under high pressure and vacuum conditions.

Q: What are the key benefits of using a metal gasket with stainless steel inner and outer rings?

A: The stainless steel rings enhance durability, corrosion resistance, and mechanical strength, ensuring a longer lifespan and consistent performance under fluctuating temperature and pressure. This results in improved system reliability and decreased maintenance costs.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Industrial Gaskets' category

Ring Gaskets Price : 10-5000 INR/Kilograms Hardness : Varies as per material (typically 4080 Shore A/D for elastomers, 40200 HB for metals) Material : Other, Stainless Steel, Mild Steel, Carbon Steel, Graphite, PTFE, Inconel, Copper, Brass, Aluminium Size : Standard sizes and custom sizes available ranging from 15mm to 900mm (ID/OD) Thickness : 1 mm to 10 mm Shape : Other, Ring Application : Used for leakproof flange sealing in pipelines, valves, and pressure vessels Medium : Other, Suitable for oil, gas, water, steam, chemicals, acids, and alkalis Working Temperature : Up to 700C (Depending on material) Temperature Resistance : 50C to 700C Pressure Resistance : Up to 250 bar Vaccum Range : Down to 1x10 Torr Standard : ASME B16.20, API 6A, DIN, EN, IS Inner Ring : Available upon request Gasket Coefficient : Varies as per material and standard (0.3 to 0.6 mfactor for standard materials) Outer Ring : Available upon request

Send Inquiry

Flange Gaskets Price : 10-5000 INR/Kilograms Hardness : 70 to 90 Shore A Material : Other, NonAsbestos / Rubber / PTFE / Graphite Size : as per requirement (customizable) Thickness : 3 mm Shape : Other, Ring / Full Face Application : Industrial flange sealing Medium : Other, Oil, Gas, Water, Steam Working Temperature : 50C to 250C Temperature Resistance : Up to 250C Pressure Resistance : Up to 150 bar Vaccum Range : High vacuum compatible Standard : ASME, DIN, BS10, IS Inner Ring : Available Gasket Coefficient : 0.25 to 0.5 Outer Ring : Available

Send Inquiry

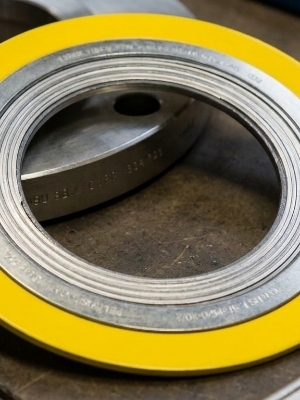

Stainless Steel Spiral Wound Gasket Price : 50 INR/Piece Hardness : Hard Material : Metal Size : Standard Thickness : 6 Millimeter (mm) Shape : Ring Gasket Application : Industrial
